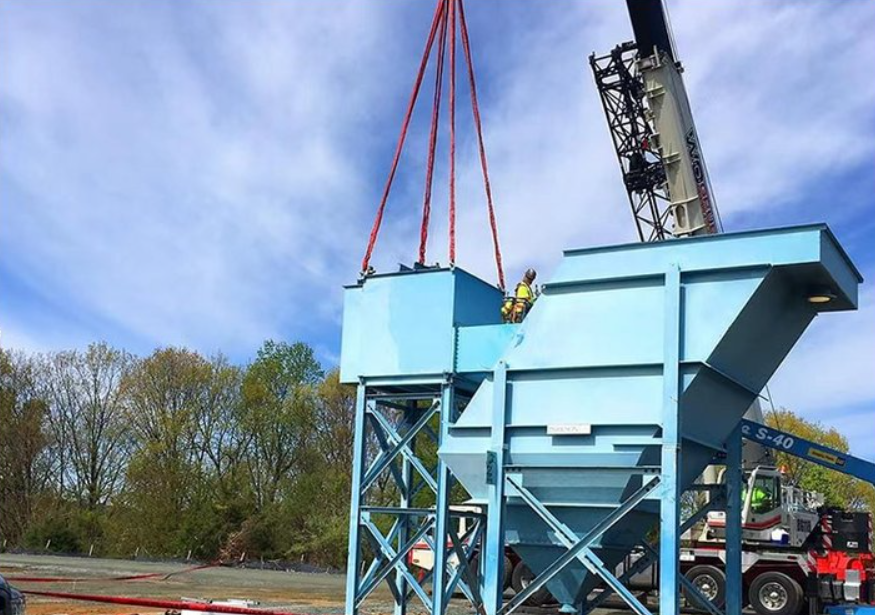

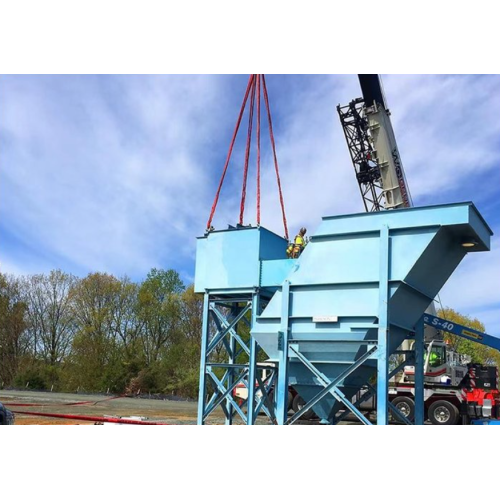

Lamella Inclined Plate Clarifier

Lamella Inclined Plate Clarifier (Tube Settler) – Efficient, Compact Sedimentation in One Box





The Lamella Inclined Plate Clarifier—often called a tube settler—is a high-rate gravity separator that uses closely-spaced, 55–60° inclined plates or hexagonal tubes to multiply effective settling area while shrinking footprint to one-tenth of conventional basins. Raw water first enters a gentle mixing/flocculation zone where micro-flocs form; the flocculated stream then flows upward between the plates. Solids settle onto the inclined surfaces, slide down into a bottom sludge hopper and are periodically withdrawn, while clarified water exits through peripheral collection launders at the top.





Key benefits

• Surface loading up to 30 m h⁻¹; 90–99 % TSS removal in 15–30 min residence time

• No moving parts, minimal energy, quiet operation

• Modular plate packs allow retrofit into existing tanks or skid-mounted packages for new builds

• Compact footprint—ideal for retrofits on crowded industrial sites or inside containerised plants



Applications

• Municipal Water Treatment: turbidity reduction after coagulation, Filter backwash recovery

• Industrial effluent: paper-mill whitewater, textile dye-bath, mining tailings, metal finishing rinse

• Pre-treatment for membrane, ion-exchange or RO systems to reduce fouling risk



Available in stainless steel, FRP or epoxy-coated carbon steel, with manual or automatic sludge removal, the Lamella Inclined Plate Clarifier delivers reliable, low-maintenance clarification wherever space, time or budget is limited.
